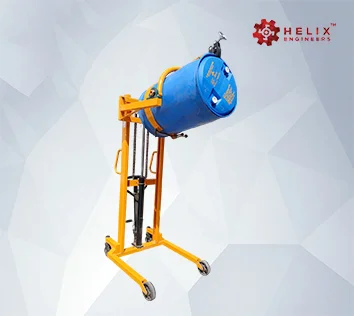

Hydraulic Drum Lifter
The Hydraulic Drum Lifter is a heavy-duty, manually operated material handling unit designed to safely lift, transport, stack, and tilt standard industrial barrels and drums. Engineered for facilities seeking high operational safety without relying on electrical power, this hydraulic-assisted unit eliminates manual lifting hazards, chemical splash risks, and barrel damage across processing plants and warehouses.
Capable of handling standard 210-liter (55-gallon) steel, plastic (HDPE), and fiber drums, the Hydraulic Drum Lifter features a high-efficiency hydraulic cylinder paired with a foot pump or tiller handle. Combined with automatic rim-gripping jaws (Eagle-Grip) or belly-clamp saddles, it allows a single operator to load, elevate, and decant heavy drums with minimal effort.
Purpose and Application
The Hydraulic Drum Lifter transforms labour-intensive barrel handling into an ergonomic, controlled operation, protecting personnel from musculoskeletal injuries and hazardous chemical spills.
Key Applications:
- Chemical & Pharmaceutical Processing:Transport chemical barrels and decant raw liquid ingredients directly into reaction kettles and batch mixers.
- Oil, Gas & Lubricant Refineries:Transport, stack, and stage 55-gallon oil drums across high-density storage racks and containment pallets.
- Food & Beverage Production:Dispense food-grade syrups, oils, flavorings, and liquid ingredients into processing hoppers.
- Paint, Coatings & Inks:Elevate and tilt resin, solvent, and pigment drums into industrial blenders and filling lines.
Design and
Operation
- Auto-Locking Eagle-Grip Attachment:Heavy-duty steel jaws clamp automatically under the drum’s top chime as lifting begins, keeping the payload firmly suspended during transport.
- 360-Degree Hand-Worm Gear Rotator:Precision hand-wheel mechanism provides smooth, micro-adjustable tilting for controlled, drip-free liquid pouring.
- Straddle Leg Base:Wide outrigger legs allow the chassis to envelop pallets, containment bunds, and rack corners for direct drum placement.
- Sealed Hydraulic Cylinder:Equipped with hard-chrome plated piston rods, internal overload bypass valves, and leak-proof polyurethane seals for durable, low-maintenance service.
Operational Workflow
- Approach & Engagement:Push the lifter toward the drum. Align the Eagle-Grip beak with the top rim (or secure the center saddle clamp around the drum body).
- Hydraulic Elevation:Pump the hydraulic foot pedal or tiller handle to engage the cylinder, elevating the drum clear of floor obstacles.
- Transport & Positioning:Push the unit to the receiving vat or storage rack using the ergonomic handles, locking the rear wheel brakes upon arrival.
- Tilting & Decanting:Turn the hand-wheel to rotate the drum to the desired angle for controlled pouring. Once empty, return the drum upright and actuate the hydraulic lowering valve.
Production & Quality Standards
- Robotic Weld Frame Fabrication:Manufactured using CNC laser-cut structural steel plate and continuous robotic welds to withstand high dynamic loads and frame torsion.
- Precision Machined Hydraulics:Micro-honed cylinder barrels and hard-chrome plated piston rams deliver smooth, chatter-free elevation and long seal life.
- 125% Factory Proof Load Certification:Every unit undergoes static and dynamic load testing at 125% of rated capacity, including full-height retention, tilt stability, and safety valve checks.
- Regulatory Compliance:Manufactured in full accordance with recognized international safety guidelines, including OSHA 1910.178, ANSI/ITSDF B56.10, and CE machinery directives.
Conclusion
A Hydraulic Drum Lifter is a practical solution for lifting, moving, stacking, and tilting heavy industrial drums without depending on electrical power. Its hydraulic lifting system, secure gripping attachments, and hand-operated rotation mechanism help make drum handling more controlled and reduce manual effort. It can be used in chemical plants, warehouses, oil handling units, food processing facilities, and paint manufacturing industries. Before selecting a model, consider the drum size, load capacity, lifting height, gripping method, and rotation requirements.
Frequently Asked Questions
What is a Hydraulic Drum Lifter used for?
A Hydraulic Drum Lifter is used to lift, transport, stack, and tilt industrial drums containing oils, chemicals, food ingredients, and other liquids.
How does a Hydraulic Drum Lifter work?
It uses a manual hydraulic pump to raise the drum, while a gripping attachment holds it securely. A hand-wheel mechanism can tilt the drum for controlled pouring.
What should be considered when choosing a Hydraulic Drum Lifter?
Consider the drum material and size, load capacity, lifting height, gripping mechanism, rotation range, and safety features before choosing a suitable model.
