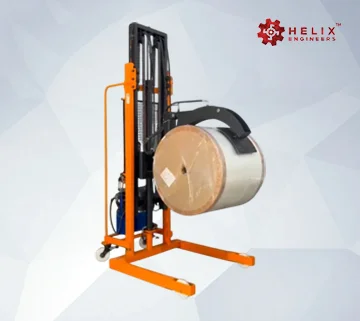

Electric Paper Roll Stacker
The Electric Paper Roll Stacker is a battery-powered material handling machine engineered to lift, maneuver, stack, and rotate heavy cylindrical rolls of paper, film, foil, and flexible packaging substrates. Powered by electric drive traction motors and electro-hydraulic lifting mechanisms, this unit automates heavy roll movement—eliminating manual exertion, increasing press-loading efficiency, and preventing surface and edge damage to sensitive media.
Equipped with specialized attachments—such as hydraulic roll clamps, 90°/180° powered rotators, or expanding core mandrels—the Electric Paper Roll Stacker allows a single operator to transition heavy rolls between vertical (“eye-to-sky”) storage configurations and horizontal (“eye-to-horizon”) machine unwinds with push-button precision.
Purpose and Application
The Electric Paper Roll Stacker is designed for high-throughput paper converting, commercial printing, and flexible packaging facilities where damage-free handling of heavy cylindrical stock is essential.
Key Applications:
- Printing Press Reel Loading:Elevate, rotate, and mount heavy paper reels directly onto web offset, flexographic, and rotogravure printing unwinds.
- Converting & Slitting Operations:Transport and position rolls of paper, plastic films, laminates, and foils onto high-speed slitters, rewinders, and bag-making machinery.
- Paper Mills & Processing Plants:Move, stack, and retrieve finished paper reels in high-density vertical rack storage or staging bays.
- Textile & Flexible Packaging:Transport and elevate heavy rolls of non-woven fabrics, technical textiles, aluminium foils, and flexible film stock.
Design and
Operation
Structural & Safety Features
- Powered Hydraulic Roll Clamp / Rotator:Rubber-lined clamp arms or expanding core mandrels securely grip the paper roll without causing surface indentation, edge tearing, or telescoping.
- Proportional Pressure Regulation:Features adjustable clamping pressure settings to match material density—preventing soft rolls from crushing and dense rolls from slipping.
- Ergonomic Multi-Function Tiller:Places forward/reverse travel, lift/lower switches, clamping controls, rotation toggles, and emergency stop button within easy reach of the operator.
- Automatic Electromagnetic Braking:System automatically engages mechanical brakes whenever the control tiller is released or placed in the vertical park position, preventing movement on inclines.
Operational Workflow
- Approach & Clamping:Drive or position the stacker toward the paper roll. Align the clamp arms or mandrel with the roll axis and engage the electric clamp control.
- Pressure Check & Lift:Verify that clamp pressure has reached the safe threshold on the indicator gauge, then press the “Up” button to raise the reel clear of floor obstacles.
- Powered Rotation & Transport:Actuate the rotation toggle to turn the roll 90 degrees to match machine orientation, then motorize the stacker toward the unwind stand.
- Mounting & Release:Align the roll center with the machine spindle, slide the reel into position, and disengage the clamping mechanism once the load is fully supported.
Production & Quality Standards
- Robotic Weld Frame Construction:Manufactured using CNC laser-cut structural steel panels and continuous robotic welds to withstand high cantilever forces during clamping and rotation.
- Precision Electro-Hydraulics:Built with hard-chrome plated cylinder rams, micro-honed barrels, and proportional hydraulic valves for micro-smooth clamping, lifting, and rotation.
- 125% Factory Proof Load Testing:Every unit undergoes factory static and dynamic load testing at 125% rated capacity to certify clamp pressure stability, hydraulic seal integrity, and mast rigidity.
- Regulatory & Safety Compliance:Fully compliant with recognized international machinery standards, including CE directives and ANSI/ITSDF B56.10 safety guidelines for industrial trucks.
Conclusion
An Electric Paper Roll Stacker helps lift, transport, stack, and rotate heavy rolls of paper, film, foil, and flexible packaging materials. Its battery-powered drive and hydraulic lifting system reduce manual effort and support smoother material handling in printing plants, paper mills, and packaging facilities. Features such as adjustable clamping pressure, powered rotation, and easy-to-use controls help keep rolls secure during movement and positioning. Selecting a stacker based on roll weight, diameter, core size, lifting height, and handling requirements helps ensure it meets the needs of the workplace.
Frequently Asked Questions
What is an Electric Paper Roll Stacker used for?
An Electric Paper Roll Stacker is used to lift, move, stack, and position heavy rolls of paper, plastic film, aluminium foil, and other flexible materials.
Can an Electric Paper Roll Stacker rotate paper rolls?
Yes, models fitted with powered rotation attachments can turn rolls to the required position for storage or loading onto printing and converting machines.
What should be considered when choosing an Electric Paper Roll Stacker?
Consider the roll weight, diameter, core size, lifting height, clamping attachment, and rotation requirements before selecting a stacker.
