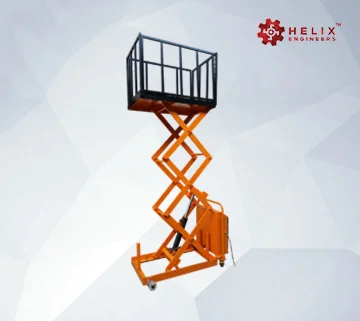

Hydraulic Scissor Lift Table
Manufactured with ergonomics and load handling in mind, the Hydraulic Scissor Lift Table simplifies material handling, decreases the physical stress on operators and improves safety in the workplace in a number of industrial applications.
Key Features of Our Hydraulic Scissor Lift Tables
Heavy-duty design for long-term durability
Smooth and stable lifting operation
Easy to install and operate
Low maintenance and high efficiency
Custom sizes and load capacities available
Suitable for warehouses, workshops, loading docks, factories, and more
Purpose and Application
The main function of the Hydraulic Scissor Lift Table is to safely span a vertical gap and lift heavy articles to an optimal working height. Reduced repetitive bending and manual lifting reduces injuries and overall operational efficiency.
Key Applications:
- Assembly Lines:Stores parts at optimum levels for workers while in production.
- Loading Bays & Logistics:Eases the flow of transferring goods from one vehicle to another, conveyors and storage racks.
- Warehousing & Stacking:Provides safe handling and vertical stocking of pallets.
- Machine Feeding:Provides raw materials to processing machines such as CNC machines and presses.
Design and
Operation
- Scissor Mechanism:Dual-pantograph steel legs with precision-machined pivot pins offer even vertical raising and lowering and maximum load-bearing rigidity.
- Hydraulic System:Heavy duty hydraulic cylinder with durable polyurethane seals provides smooth and controlled lifting and lowering cycles with no jerking.
- Safety Integration:Safety skirt options, emergency stop buttons and safety trip bars under the platform are integrated to stop the movement on sight if an obstruction is detected.
- User Operation:Actuate the lift with an easy-to-use push-button control station or foot pedal. The hydraulic ram is used for extending the fluid pressure, which opens the scissor legs and lifts the platform gently to the targeted height.
Production & Quality Assurance
- Precision Cutting & Fabrication:High-grade steel profile and plate are CNC laser cut and automatically welded to guarantee the accuracy of the tolerance and the durability of the frame.
- Surface Treatment & Coating:Parts are shot blasted to clean and then with the aid of electrostatic power coating, the parts are given a powder coat with a high corrosion resistance.
- Hydraulic Assembly:Pumps, valves and cylinders are put together in a clean room in order to avoid fluid contamination and seal degradation.
- Testing & Inspection:All units are static loaded, tested for endurance & full cycles, and safety valve calibrated prior to dispatch.
Our Product Range
Manual Hydraulic Scissor Lift Tables
Electric Hydraulic Scissor Lift Tables
Stationary Lift
Tables
Mobile Scissor Lift Tables
Custom Lift
Platforms
| Specification | Details |
|---|---|
| Price Range | ₹50,000.00 – ₹1,50,000.00 |
| Model Name | Hydraulic Scissor Lift Table |
| Running Mode | Trailer Type |
| Power Source | Electric / Battery |
| Lift Type | Scissor |
| Working Height | 5 feet to 20 feet |
| Rated Loading Capacity | 500 kg to 5000 kg |
| Capacity | 500 kg to 5000 kg |
| Table Material | MS (Mild Steel) |
| Table Color | Orange |
| Material | MS (Mild Steel) |
| Customization | Yes (Custom sizes and features available) |
| Usage / Application | Industrial, Warehouse, Factory |
| Service Mode | Industrial |
| Voltage | 220V |
Conclusion
The Hydraulic Scissor Lift Table is a practical solution for lifting and positioning heavy materials safely and efficiently across industrial environments. With a robust MS construction, smooth hydraulic operation, customizable capacities, and multiple operating options, it can support applications ranging from warehouses and factories to loading bays and production lines. Choosing the right lift capacity, working height, and configuration can help improve material handling efficiency while reducing manual effort and workplace strain.
Frequently Asked Questions
What is a Hydraulic Scissor Lift Table used for?
It is used to safely lift and position heavy materials at different working heights in warehouses, factories, workshops, and loading areas.
What load capacity is available?
The Hydraulic Scissor Lift Table is available with load capacities ranging from 500 kg to 5000 kg, depending on the application and configuration.
Can the lift table be customized?
Yes. Custom sizes, load capacities, and other features can be provided based on specific operational requirements.
